Barn Handyman

The partitioned workshop, with a loft on top

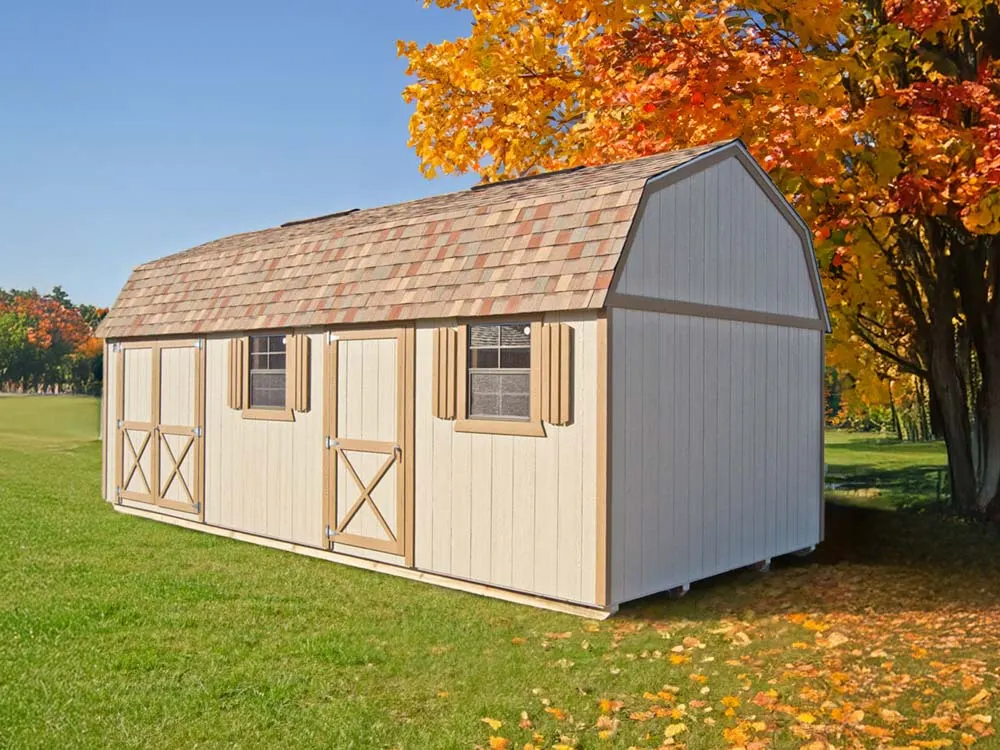

Barn Handyman — The partitioned workshop, with a loft on top

Same two-room layout as the Utility Handyman, built under a barn roof. You get the interior partition dividing workshop from storage, plus the overhead loft that the gambrel shape makes possible.

Worth knowing

This is the most storage-dense building in the range — two usable ground-floor rooms and a loft above both. If you are trying to get a workshop and a season's worth of storage onto one pad, this is the one that does it.

Features

  • Interior partition wall
  • Overhead loft
  • Barn roof profile
  • Two ground-floor rooms

Common uses

  • Workshop plus bulk storage
  • Hobby and equipment
  • Small business storage

Available sizes

SizeFootprint
12' × 24' 288 sq ft
12' × 32' 384 sq ft

Floor plans

The floor plan sets where the doors and windows go. This model is offered in 1 plan — the same building, laid out differently. Tell us how you will approach it and what goes inside, and the right one is usually obvious.

Floor plan 812 for the Barn Handyman
Plan 812

How it is built

Floor construction detail

Floor

  • Treated skids and joists on 16" centers, rated for ground contact
  • 4x6 notched floor skids — two on 8' wide buildings, four on 10' and 12' wide
  • 5/8" LP ProStruct treated floor decking with interlocking SmartFinish
Walls construction detail

Walls

  • LP SmartSide engineered wood siding and trim, treated against water and insects
  • 2x4 studs on 16" centers
  • Metal hurricane straps tying wall framing to rafters, rated to 160 mph
Roof construction detail

Roof

  • 2x4 rafters joined with steel plates
  • 7/16" OSB roof decking
  • Aluminum drip edge protecting decking and eaves
Doors construction detail

Doors

  • 6" heavy-duty zinc-plated hinges and handle
  • Adjustable tension rods to stop the doors sagging
  • Aluminum threshold protecting the floor edge
